transform을 이용해 Animated Popover 컴포넌트 구현하기

transform을 이용해 Animated Popover 컴포넌트 구현하기

2022.11.02

TLDR; 간단한 블로그 포스트 공유 버튼을 만들었다.

구현에 필요한 기능은 아래와 같다.
  • clipboard에 주소를 복사할 수 있을 것
  • Animation(slide-in/slide-out)이 적용된 Popover을 보여줄 것

간단하게 아래 코드로 먼저 만들어보았다.
// ShareButton.tsx
import { CopyToClipboard } from "@/utils/copyText";
import React, { useState } from "react";
import { FiLink } from "react-icons/fi";
import Popover from "@/components/popover";

interface ShareButton {
  url: string;
}

const ShareButton = ({ url }: ShareButton) => {
  const [open, setOpen] = useState(false);
  const timerRef = React.useRef(0);

  React.useEffect(() => {
    return () => clearTimeout(timerRef.current);
  }, []);

  const handleClick = () => {
    CopyToClipboard(url);
    setOpen(true);
    window.clearTimeout(timerRef.current);
    timerRef.current = window.setTimeout(() => {
      setOpen(false);
    }, 1000);
  };

  return (
    <div className="relative flex flex-col items-center">
      <Popover open={open} onOpenChange={setOpen}>
        링크가 복사되었습니다 😄
      </Popover>
      <div
        className="w-max flex flex-row gap-2 items-center p-3 cursor-pointer text-lg leading-normal text-gray-400 transition-colors rounded-xl bg-gray-500 bg-opacity-10 hover:bg-opacity-30"
        onClick={handleClick}
      >
        <FiLink /> 공유하기
      </div>
    </div>
  );
};

export default ShareButton;
// Popover.tsx
import React, { useState, useEffect } from "react";
import styled, { keyframes } from "styled-components";

const Popover = ({
  open,
  onOpenChange,
  children,
}: {
  open: boolean;
  onOpenChange: any;
  children: any;
}) => {
  return (
    <Panel open={open}>
      <div className="text-center font-medium">{children}</div>
    </Panel>
  );
};

const slideIn = keyframes`
  from {
    opacity: 0;
    transform: translateY(50%);
  }
  to {
    opacity: 1;
    transform: translateY(0);
  }
`;

const slideOut = keyframes`
  from {
    opacity: 1;
    transform: translateY(0);
  }
  to {
    opacity: 0;
    transform: translateY(50%);
  }
`;

const Panel = styled.div<{ open: boolean }>`
  position: absolute;
  top: -60px;
  z-index: 20;
  transform: translateX(-50%);
  padding: 8px;
  width: max-content;

  border-radius: 1rem;
  background-color: white;
  box-shadow: rgba(17, 12, 46, 0.15) 0px 48px 100px 0px;
  display: flex;
  justify-content: center;
  align-items: center;

  animation-duration: 0.25s;
  animation-timing-function: ease-out;
  animation-name: ${({ open }) => (open ? slideIn : slideOut)};
  animation-fill-mode: forwards;
`;

export default Popover;
버튼을 누르면 Popover가 1초간 보여지고, 사라지게 했다.
animation

대신 이렇게 하면 Popover가 보이지 않는 상태에도 opacity가 0인채로 DOM에 남아있다는 단점이 있다. 단점이라고 생각한 이유는 우리 눈에만 보이지 않을 뿐 화면에 렌더링 되며 불필요한 자원을 사용하고 있고, 이는 최적화 측면에서 좋지 않기 때문이다. Element의 visiblility를 조정할 수 있는 세가지 방법(opcity, visibility, display)을 비교한 stackoverflow 내용을 아래와 같이 정리할 수 있다.
  • visibility: hidden, opacity : 0 → DOM tree와 Render tree에서 남아있음 (Paint 되지 않음)
  • display: none → DOM tree에는 존재, Render tree에서는 제외
  • 조건부 렌더링 → DOM tree에도 존재하지 않음
CSS 속성을 이용해 visibility를 조정하지 않고, Popover 컴포넌트 내에 visible 이라는 상태를 따로 두어 조건부 렌더링 방식으로 바꾸어주는 것이 바람직하다고 생각한다.

import React, { useState, useEffect } from "react";
import styled, { keyframes } from "styled-components";

const Popover = ({
  open,
  onOpenChange,
  children,
}: {
  open: boolean;
  onOpenChange: any;
  children: any;
}) => {
  const [visible, setVisible] = useState(false);

  useEffect(() => {
    if (open && !visible) {
      setVisible(open); // open===true -> visible===true
    }
    if (!open && visible) {
      setTimeout(() => setVisible(false), 250); // open===false -> after 250ms visible===false
    }
  }, [open]);

  if (!visible) return <></>;
  return (
    <Panel open={open}>
      <div className="text-center font-medium">{children}</div>
    </Panel>
  );
};

const slideIn = keyframes`
  from {
    opacity: 0;
    transform: translateY(50%);
  }
  to {
    opacity: 1;
    transform: translateY(0);
  }
`;

const slideOut = keyframes`
  from {
    opacity: 1;
    transform: translateY(0);
  }
  to {
    opacity: 0;
    transform: translateY(50%);
  }
`;

const Panel = styled.div<{ open: boolean }>`
  position: absolute;
  top: -60px;
  z-index: 20;
  transform: translateX(-50%);
  padding: 8px;
  width: max-content;

  border-radius: 1rem;
  background-color: white;
  box-shadow: rgba(17, 12, 46, 0.15) 0px 48px 100px 0px;
  display: flex;
  justify-content: center;
  align-items: center;

  animation-duration: 0.25s;
  animation-timing-function: ease-out;
  animation-name: ${({ open }) => (open ? slideIn : slideOut)};
  animation-fill-mode: forwards;
`;

export default Popover;

Popover 컴포넌트 안에서 open, visible이라는 boolean 값을 이용해 시간차로 animation을 보여주는 로직이 들어가있는데, 추후 Popover 뿐 아니라 Modal, Dropdown 등의 컴포넌트에서 Animated Visible 효과를 사용할 수 있다는 점에서 Custom hook으로 분리를 하면 좋을 것 같았다. 따라서 useAnimationVisible 이라는 Hook을 만들어서 분리했다.
최종 코드는 아래와 같다.

// useAnimationVisible.tsx
import { useState, useEffect, useCallback } from "react";

type useAnimationProps = [boolean, (open: boolean) => void];

const useAnimationVisible = (duration: number): useAnimationProps => {
  const [visible, setVisible] = useState<boolean>(false);
  const [open, setOpen] = useState<boolean>(false);

  useEffect(() => {
    if (open && !visible) {
      setVisible(open);
    }
    if (!open && visible) {
      setTimeout(() => setVisible(false), duration);
    }
  }, [open]);

  const _setVisible = useCallback(
    (open: boolean) => {
      setOpen(open);
    },
    [setOpen],
  );

  return [visible, _setVisible];
};

export { useAnimationVisible };
import { useAnimationVisible } from "@/hook/useAnimationVisible";
import React, { useState, useEffect } from "react";
import styled, { keyframes } from "styled-components";

const Popover = ({
  open,
  duration,
  children,
}: {
  open: boolean;
  duration: number;
  children: any;
}) => {
  const [visible, setVisible] = useAnimationVisible(duration);

  useEffect(() => {
    setVisible(open);
  }, [open]);

  if (!visible) return <></>;
  return (
    <Panel open={open} duration={duration}>
      <div className="text-center font-medium">{children}</div>
    </Panel>
  );
};

const slideIn = keyframes`
  from {
    opacity: 0;
    transform: translateY(50%);
  }
  to {
    opacity: 1;
    transform: translateY(0px);
  }
`;

const slideOut = keyframes`
  from {
    opacity: 1;
    transform: translateY(0);
  }
  to {
    opacity: 0;
    transform: translateY(50%);
  }
`;

const Panel = styled.div<{ open: boolean; duration: number }>`
  position: absolute;
  top: -60px;
  z-index: 20;
  transform: translateX(-50%);
  padding: 8px;
  width: max-content;

  border-radius: 1rem;
  background-color: rgba(107, 114, 128, 0.1);
  box-shadow: rgba(17, 12, 46, 0.15) 0px 48px 100px 0px;
  display: flex;
  justify-content: center;
  align-items: center;

  animation-duration: ${({ duration }) => duration / 1000}s;
  animation-timing-function: ease-out;
  animation-name: ${({ open }) => (open ? slideIn : slideOut)};
  animation-fill-mode: forwards;
`;

export default Popover;
import { CopyToClipboard } from "@/utils/copyText";
import React, { useState } from "react";
import { FiLink } from "react-icons/fi";
import Popup from "@/components/popover";

interface ShareButton {
  url: string;
}

const ShareButton = ({ url }: ShareButton) => {
  const [open, setOpen] = useState(false);
  const timerRef = React.useRef(0);

  React.useEffect(() => {
    return () => clearTimeout(timerRef.current);
  }, []);

  const handleClick = () => {
    CopyToClipboard(url);
    setOpen(true);
    window.clearTimeout(timerRef.current);
    timerRef.current = window.setTimeout(() => {
      setOpen(false);
    }, 1000);
  };

  return (
    <div className="relative flex flex-col items-center">
      <Popup open={open} duration={250}>
        링크가 복사되었습니다 😄
      </Popup>
      <div
        className="w-max flex flex-row gap-2 items-center p-3 cursor-pointer text-lg leading-normal text-gray-400 transition-colors rounded-xl bg-gray-500 bg-opacity-10 hover:bg-opacity-30"
        onClick={handleClick}
      >
        <FiLink /> 공유하기
      </div>
    </div>
  );
};

export default ShareButton;

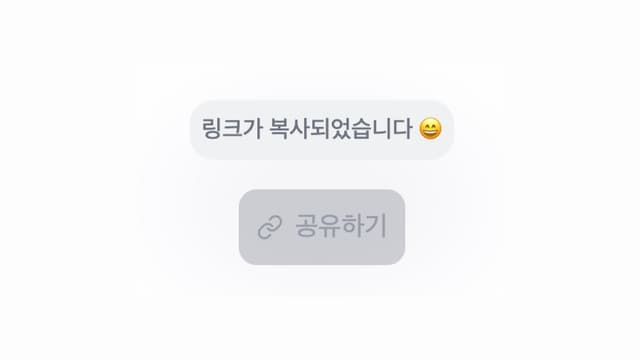

notion image
